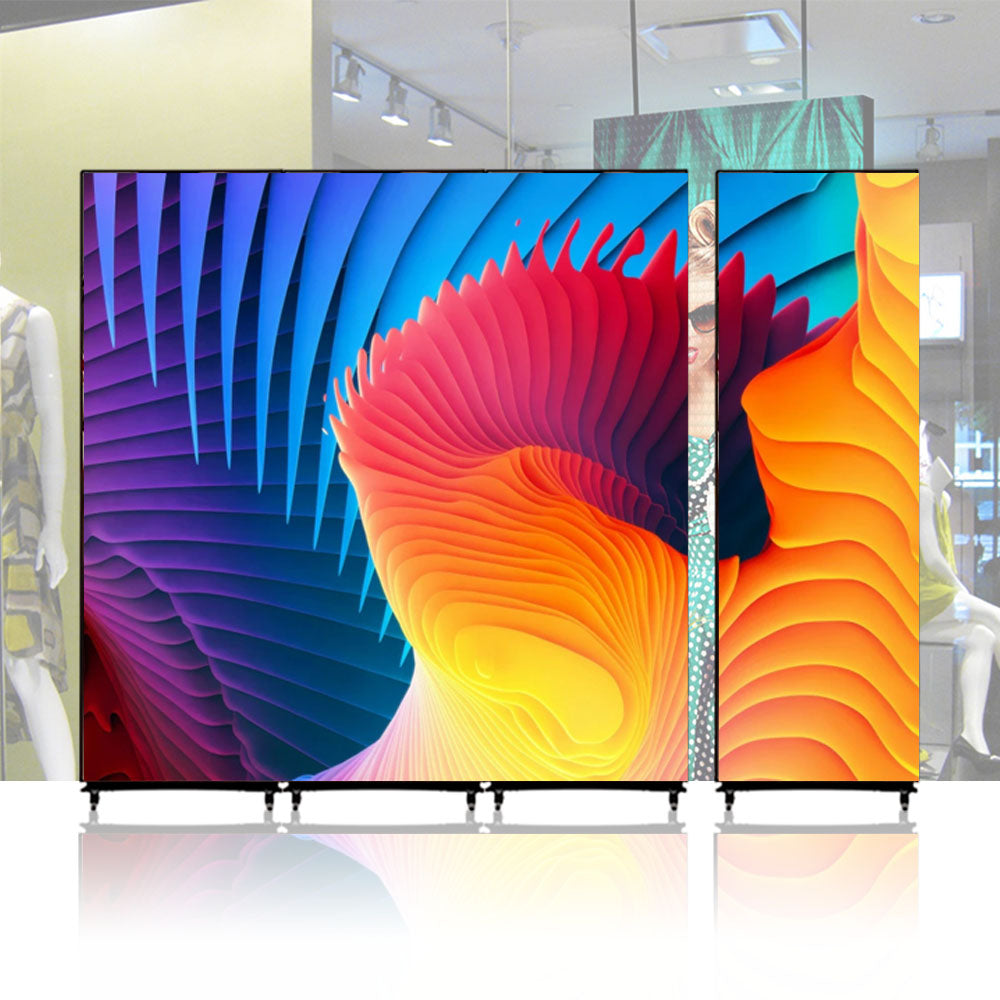

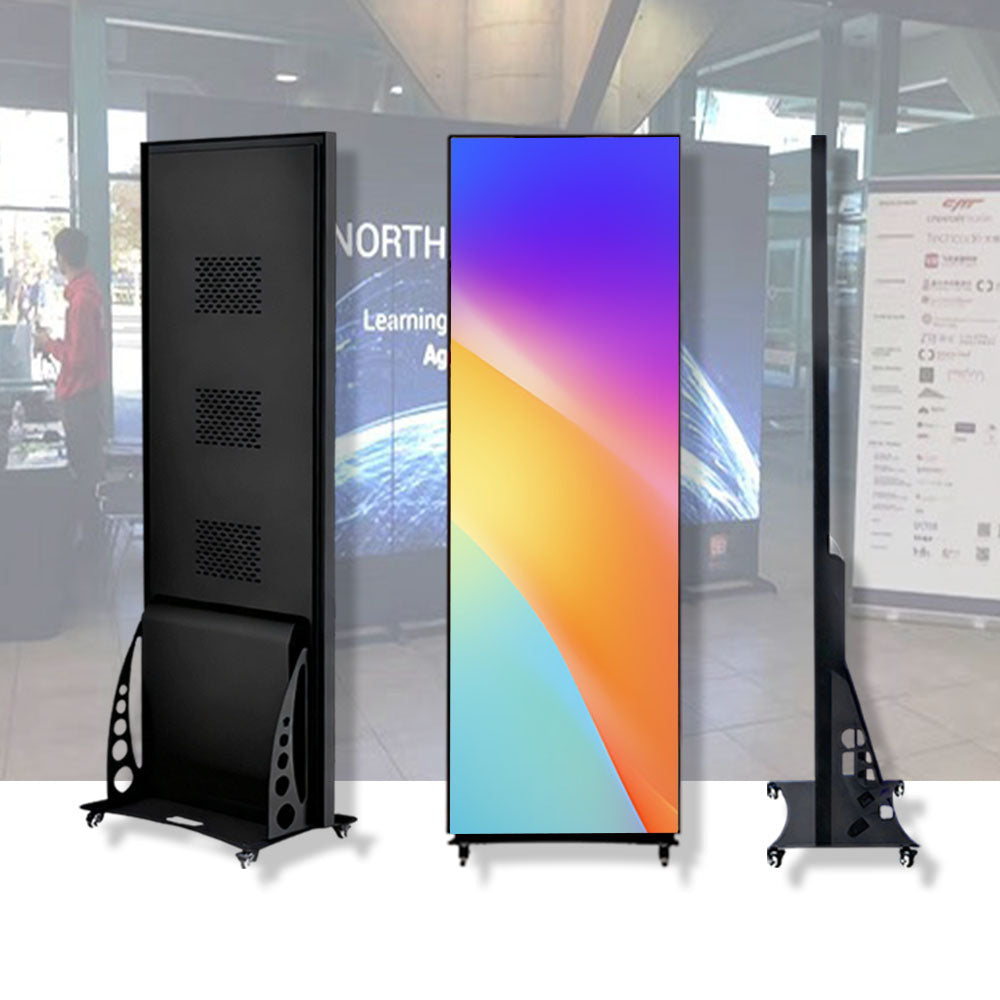

Quick Connect LED Display

Regular price $300.00
Sale price $300.00 Regular price
Unit price
Save
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
24 people are viewing this right now

Configuration

1 stand alone screen (2’1” wide by 6’3” Tall)

2 screens connected together (4’2” wide by 6’3” Tall)

3 screens connected together (6’3” wide by 6’3” Tall)

4 screens connected together (8’4” wide by 6’3” Tall)

5 screens connected together (10’5” wide by 6’3” Tall)

6 screens connected together (12’6” wide by 6’3” Tall)

Screen Specs for image/ Video:

Each Screen measures 2’10” wide by 6’3” Tall

Individual screens require the video saved as an MP4 and to be 256 pixels by 768 pixels

Or if you are grouping 2 screens, then 512 pixels by 768 pixels

Or if you are grouping 3 screens, then 768 pixels by 768 pixels

Or if you are grouping 4 screens, then 1024 pixels by 768 pixels

Or if you are grouping 5 screens, then 1280 pixels by 768 pixels

Or if you are grouping 6 screens, then 1536 pixels by 768 pixels

Quick Connect LED Display

Quick Connect LED Display

Product description

The quick connect LED retail display is perfect for events, storefront exposure and overall brand promotion. With eye-catching image quality, vivid colors and a creative design, our units turn heads using the most innovative technology on the market.

Using quick connect technology, these screens create an easy and unique video experience for your customers and clients. Multiple units allow you to build a seamless video wall experience, creating endless advertising possibilities.

Module Specifications:

  • Pixel Pitch: 2.5mm
  • Module Size: 320mm × 160mm
  • Module Resolution: 128x64 dots/m2
  • Color Configuration: SMD 3in1 1R1G1B
  • Pixel Density: 160000 dots/m2
  • Driver Mode: 1/32 Scan

Standard Cabinet Specifications:

  • Cabinet Size(WXH): 640mm W x 1920mm H
  • Cabinet Resolution: 256x768 Pixels /dots
  • Module Quantity: 24pcs
  • Pixel Density: 160000 dots/m2
  • Average Power Consumption: 200W/m2
  • Max. Power Consumption: 600W/m2
  • Frame Material: Iron
  • Cabinet Weight: 35KG/Piece

Screen Parameters:

  • Screen size: 0.64m(w)x1.92m(h)
  • Cabinet Quantity:1 pcs
  • Controlling system: Huidu
  • Refresh rate: 1920Hz
  • Power Supply: 5V 40A 110-220V
  • Viewing Angle: Horizontal 140° Vertical 140°
  • Min. Viewing Distance: ≥2.5 meters
  • Gray scale: 8192×8192×8192
  • Brightness: 700 cd/m²
  • Colors: 549 Billion
  • Input Voltage: AC220V/50Hz or AC110V/60Hz
  • MTBF: >10,000 hours
  • Life span: ≥100,000 hours
  • IP rating(Front/Rear): IP31
  • Temperature Operating: -10°C~60°C
  • Humidity Operating: 10%~90%
  • Certifications: CE, ROHS, ISO9001
